Description

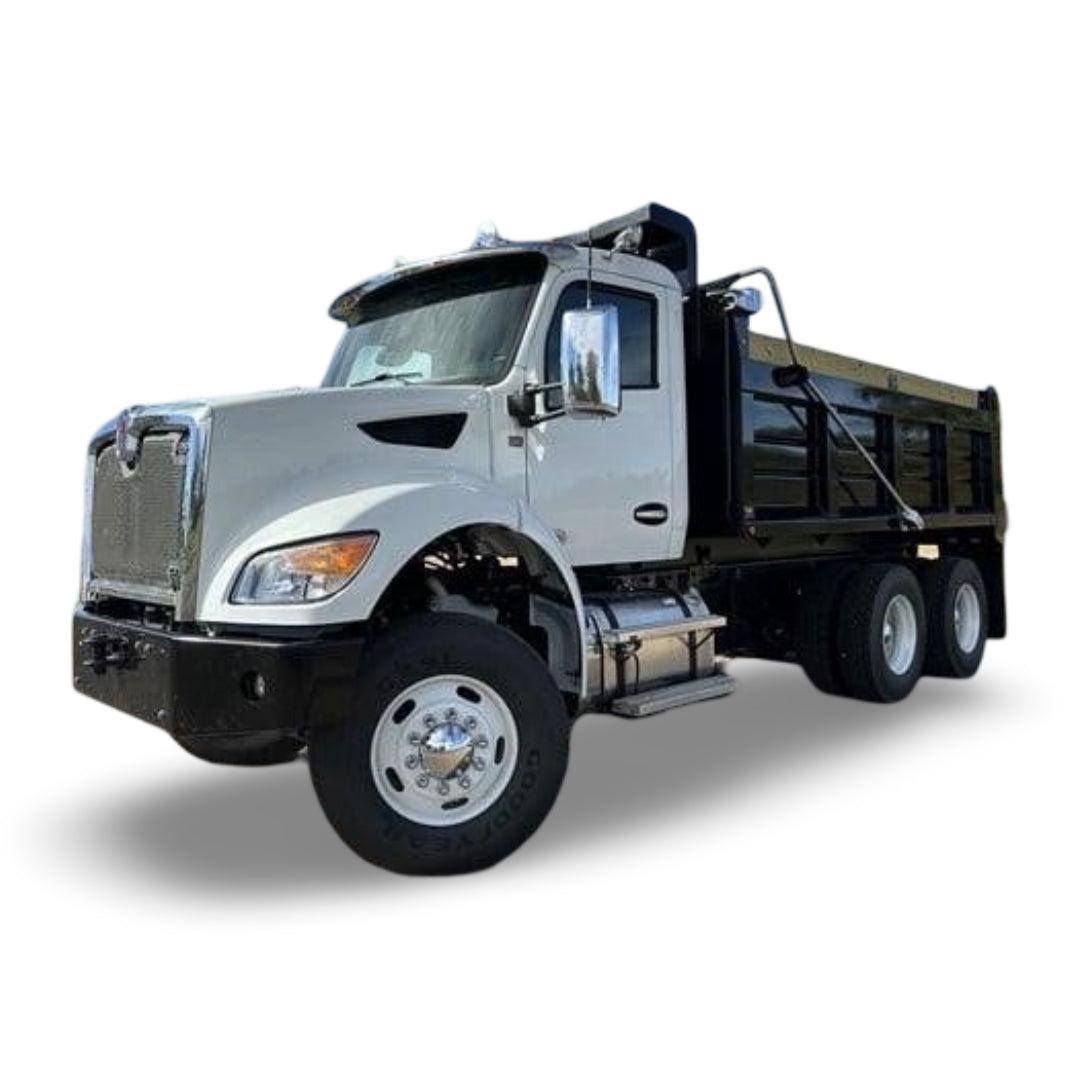

dump tarp truck Complete Electric Steel 4-Spring Dump Truck Tarp System (Fits Up to 23’ Dump Beds)This is a complete bolt on kit (no welding required) (tarp sold separately) Our 4 Spring External Mount Electrical Steel Tarping System includes the complete zinc plated steel arm set, motor, switch kit, wiring, tarp spool, and all the necessary hardware for installation. This dump truck tarp system comes with everything you need to haul, protect, and contain loads in dump bodies 23' and under. If your truck or trailer is under 16' feet, you can order
This is a complete bolt-on kit (no welding required) (tarp sold separately)
Our 4 Spring External Mount Electrical Steel Tarping System includes the complete zinc-plated steel arm set, motor, switch kit, wiring, tarp spool, and all the necessary hardware for installation. This dump truck tarp system comes with everything you need to haul, protect, and contain loads in dump bodies 23' and under.
If your truck or trailer is under 16' feet, you can order a shorter arm system to cut down on freight cost.
This kit includes:
- (2) 93" Steel Lower Arms with Plug
- (2) 3.7" Steel Pivot Pins
- (8) Spiral Torsion Springs
-
(4) Stainless Steel Bushings for the Pivot Pin
- (1) Aluminum HD Extruded Tarp Axle (51 1/2" Two Piece Design)
- (2) Aluminum Tarp Spool Mounting Brackets
- (1) Apache Slim-Style Motor (Chrome Cover Included) (3-Year Warranty Included)
- (1) Axle Bearing with Flanges
- (1) Stud Shaft
- (1) Rotary Switch Kit
- (2) 93" Steel Side Arms
- (2) Steel 90-Degree Corner
- (1) 16 Gauge Steel Cross Tube, 1.315" Diameter
- (2) Tarp Centering Flange
- (50') 6 Gauge Wire
- All Necessary Hardware for Installation
HOW TO MEASURE FOR A TARP
For tarp size, please measure inside to inside of where axle/motor will be mounted, subtract 4" and that will be your width. For length, please measure from where the axle will be to the tailgate, then add 2'.
