Description
gears with bearings 2010-2014 Ford 8.8" 10 BoltFord 8. 8" 10 Bolt Gear Package Description Package Includes: (1) Ring and Pinion Gear Set (1) Master Bearing Install Kit *Note: 2010 2014 Mustang's, and 2009 2010 F150's use a 3. 250" OD inner pinion bearing race. 2011 2015 F150's use a 3. 544" OD inner bearing race. Please select what model you are working on above to ensure you receive the correct inner pinion bearing size! Rigid Axle aftermarket ring and pinion gear sets are made from heat treated

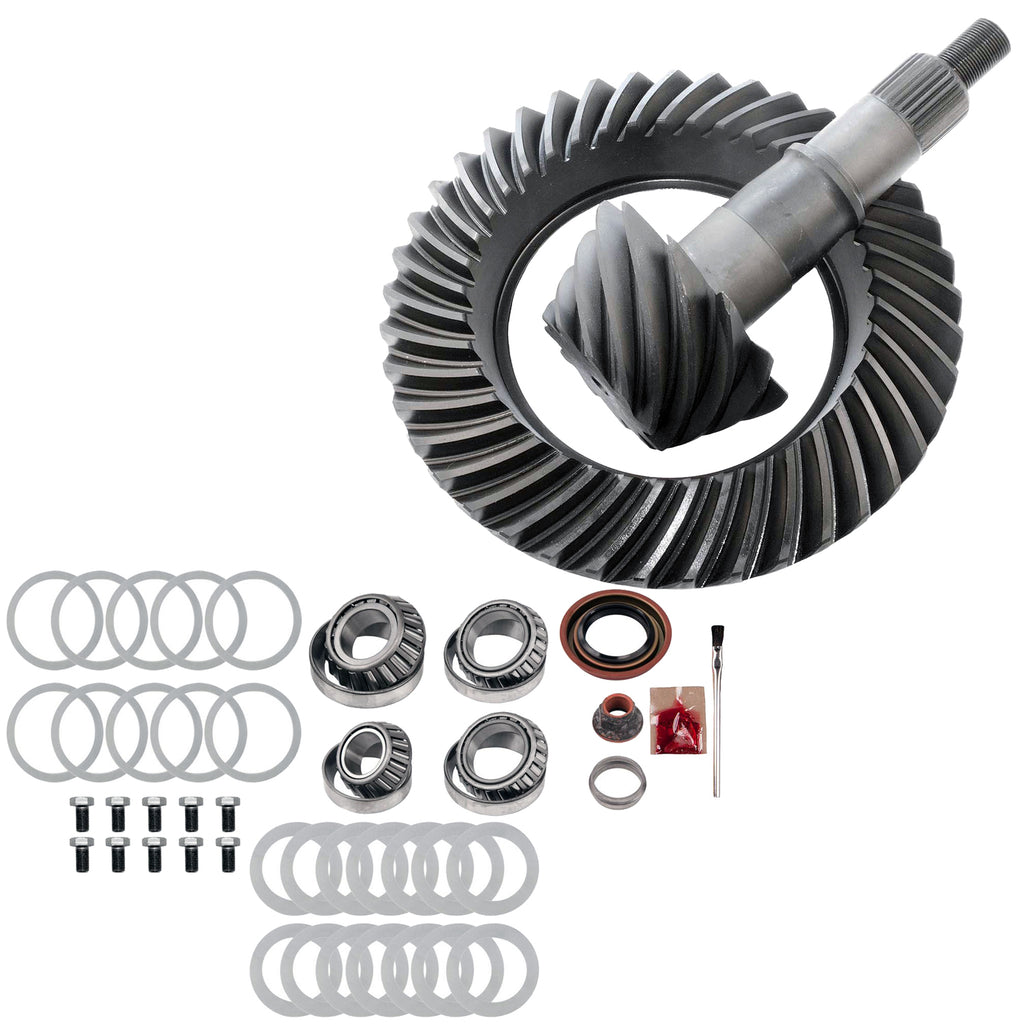

Ford 8.8" 10 Bolt Gear Package
Description
Package Includes:
(1) Ring and Pinion Gear Set
(1) Master Bearing Install Kit
- *Note: 2010-2014 Mustang's, and 2009-2010 F150's use a 3.250" OD inner pinion bearing race. 2011-2015 F150's use a 3.544" OD inner bearing race. Please select what model you are working on above to ensure you receive the correct inner pinion bearing size!
- Rigid Axle aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Each gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!
- Remember to properly break in your new gear set! Click here for instructions!
- Our Master overhaul kits come with everything you need to replace, modify, or rebuild your differential. This will allow you to get the job done quicker, and cheaper at the end of the day. Rigid Axle master bearing install kits include:
- Both (Inner & Outer) High Quality Koyo Pinion Bearings and Races
- High Quality Koyo Carrier Bearings and Races
- Pinion and Carrier Shims
- Pinion Seal
- Pinion Nut
- Ring Gear Bolts
- Crush Sleeve and Preload Shims
- Loctite
- RTV Sealant or Cover Gasket
- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!
Applications
- Ford F-150 1/2 Ton (2009 - 2014)
- Ford Mustang (2010 - 2014)
Specifics
- Cover Bolt Quantity: 10
- Differential Model: Ford 8.8"
- Pinion Shaft Diameter: 1.625 Inch
- Pinion Spline Count: 30
- Ring Gear Bolt Quantity: 10
- Ring Gear Diameter: 8.8 Inch
- Ring Gear Material: Heat Treated 8620 Steel
- Ring Gear Rotation: Standard
